Yamaha VF90 VMAX SHO

Name: Yamaha VF90 VMAX SHO
Brand: Yamaha
Availability: OutOfStock

Call Email

Call Now!

Contact Us Get Approved Value a Trade Get Directions Get Directions Print

Overview

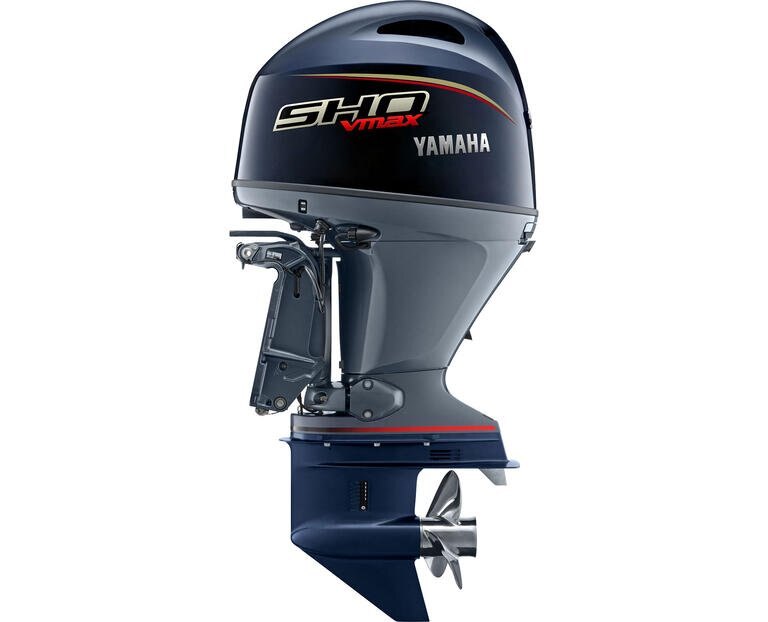

Fresh looks for a classic legend! The 90-horsepower In-Line Four V MAX SHO® may be the smallest in the V MAX SHO lineup, but it packs a big punch. Its lightweight design combined with 1.8-litre displacement makes the VF90 V MAX SHO the class leader in torque and top speed. Add to that the option of a 25-inch shaft and the VF90 is an exciting new prospect for bass, walleye and muskie anglers.

Specifications

Model

VMAX SHO

Category Name

Outboard Engines

Year

2026

Sale Type

New

Manufacturer

Yamaha

Color

black

engine

Cooling

Water/Thermostatic Control

Exhaust

Through Propeller

Ignition

TCI micro-computer

Starting

Electric

RPM Range

5000-6000

Gear Ratio

2.33 (28:12)

Gear Shift

F-N-R

Engine Type

Inline 4-cylinder

Lubrication

Wet Sump

Displacement

1832 cc (111.8 ci)

Bore & Stroke

81 x 88.9 mm (3.19 x 3.5 in)

Fuel Delivery

EFI

Induction System

SOHC, 4 valves per cylinder

Alternator Output

35 Amps

Compression Ratio

10.1:1

Degree Of Trim/Tilt

-4° through +16°/66°

dimensions

Dry Weight

L:162 kg (357 lb) X: 166 kg (365 lb)

Shaft Length

20" (L) / 25" (X)

highlights

LIGHT AND Compact

The inline four-cylinder V MAX SHO 90 features a single overhead camshaft with four valves per cylinder for 16 total valves. This optimizes engine combustion, and creates class-leading torque, acceleration and efficiency, all while reducing mass in the cylinder head and streamlining weight.

VARIABLE TROLLING

Yamaha's Variable Trolling RPM Switch (VTS®) allows for precision adjustment of trolling speeds from 550 to 1000 RPM in 50-RPM increments - and even trolling at 200 RPM below idle. This feature is available if the outboard is equipped with Yamaha's multi-function tiller handle, Command Link Display or new remote switch.

Charging Power

The V MAX SHO 90 features a three-phase alternator that produces up to 35 amps. That's plenty of power for battery charging and accessories, with more to spare.

key features

Multi-point fuel injection: With Multi-point Fuel Injection, Fuel is delivered at the optimum volume and time according to ECU sensor signals. This ensures quick starts, efficient fuel consumption, and ample power along with ultra-low emissions.
Command link compatibility: The VF90 is compatible with Yamaha's Command Link 6Y8 and 6YC digital gauges, as well as Y-COP®.
Amp it up: The VF90 features a three-phase alternator that produces up to 35 amps of power. So there's plenty of electrical power for battery charging and accessories, with more to spare.

fuel and lubrication

Oil Capacity

3.2 L (3.4 US qt) — with filter

Recommended Oil

Yamalube 4-M FC-W 10W-30 or 20W-40

Recommended Fuel

Regular Unleaded (Minimum Pump Octane 87)

features and benefits

MULTI-POINT FUEL INJECTION

With Multi-point Fuel Injection, Fuel is delivered at the optimum volume and time according to ECU sensor signals. This ensures quick starts, efficient fuel consumption, and ample power along with ultra-low emissions.

COMMAND LINK COMPATIBILITY

The VF90 is compatible with Yamaha's Command Link 6Y8 and 6YC digital gauges, as well as Y-COP®.

AMP IT UP

The VF90 features a three-phase alternator that produces up to 35 amps of power. So there's plenty of electrical power for battery charging and accessories, with more to spare.

PEACE AND QUIET

Yamaha's Shift Dampener System (SDSTM) greatly reduces the force and noise commonly associated with shifting gears for a smoother, quieter ride. The new VF90 is compatible with Yamaha's exclusive TalonTM SDSTM propellers.

POWER TRIM AND TILT

The VF90 is equipped with a single compact, lightweight PTT unit. The tilt angle can be adjusted with the optional tilt limiter.

MULTI-FUNCTION TILLER HANDLE

Yamaha's award-winning Multi-Function Tiller Handle incorporates engine start/stop, emergency stop, gear shift, power trim and tilt operation, variable trolling switch, warning and controls all in one. It can be added as an accessory to the new V MAX SHO 90.
