2025 Robalo R230

Call Email
2025 Robalo R230
Call Now!
Contact Us Get Approved Value a Trade   Get Directions  Print
Overview

Pinnacle Performance

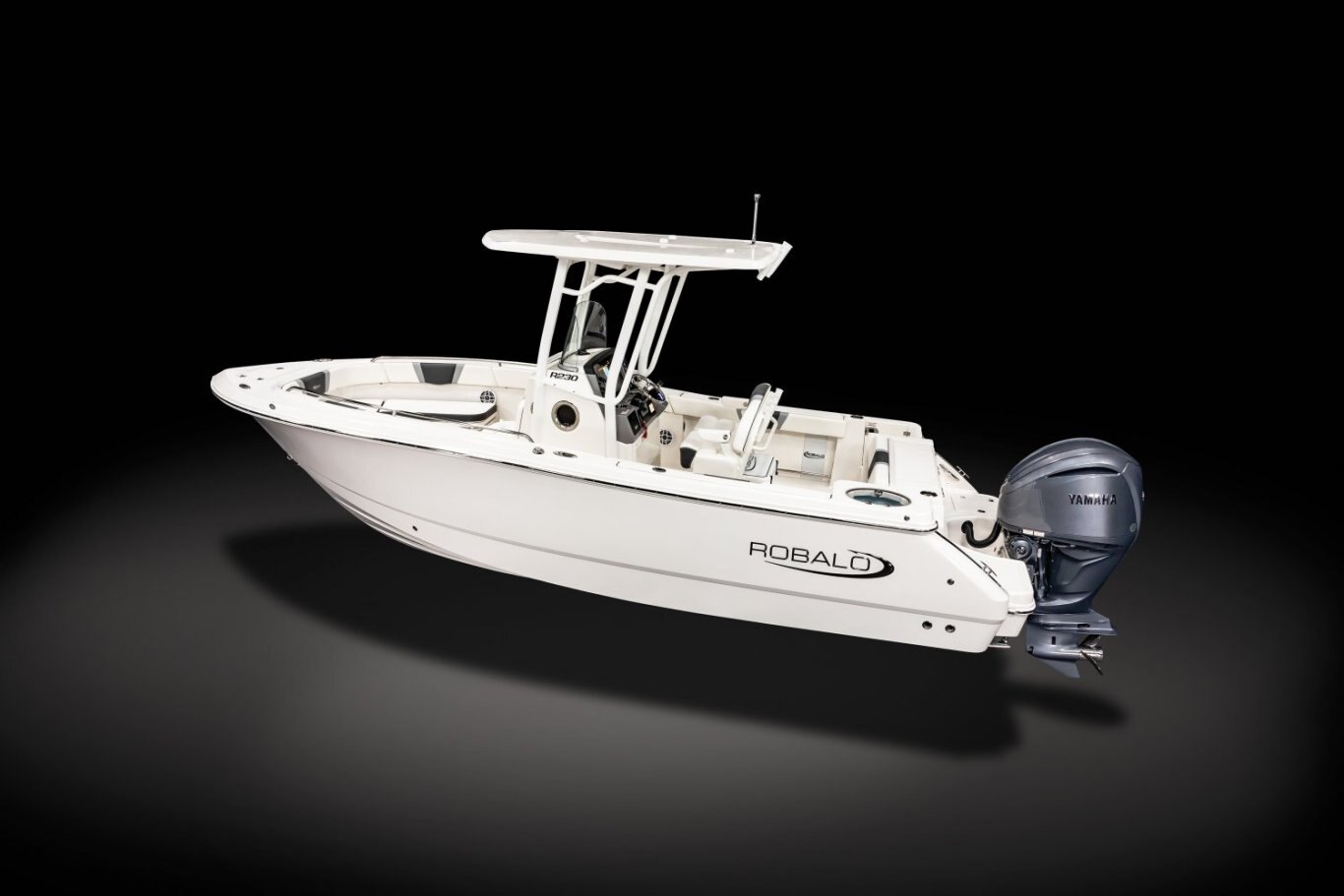

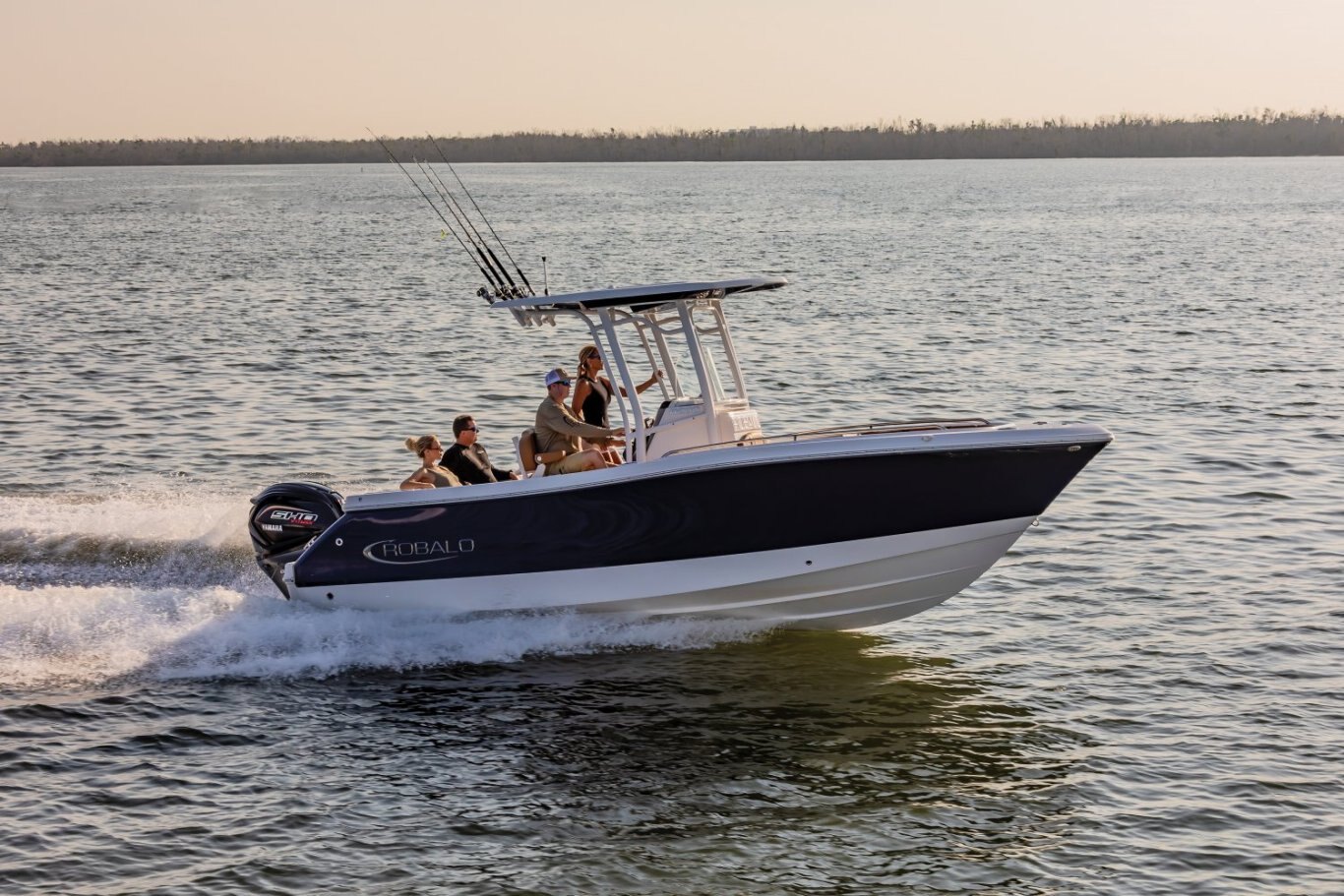

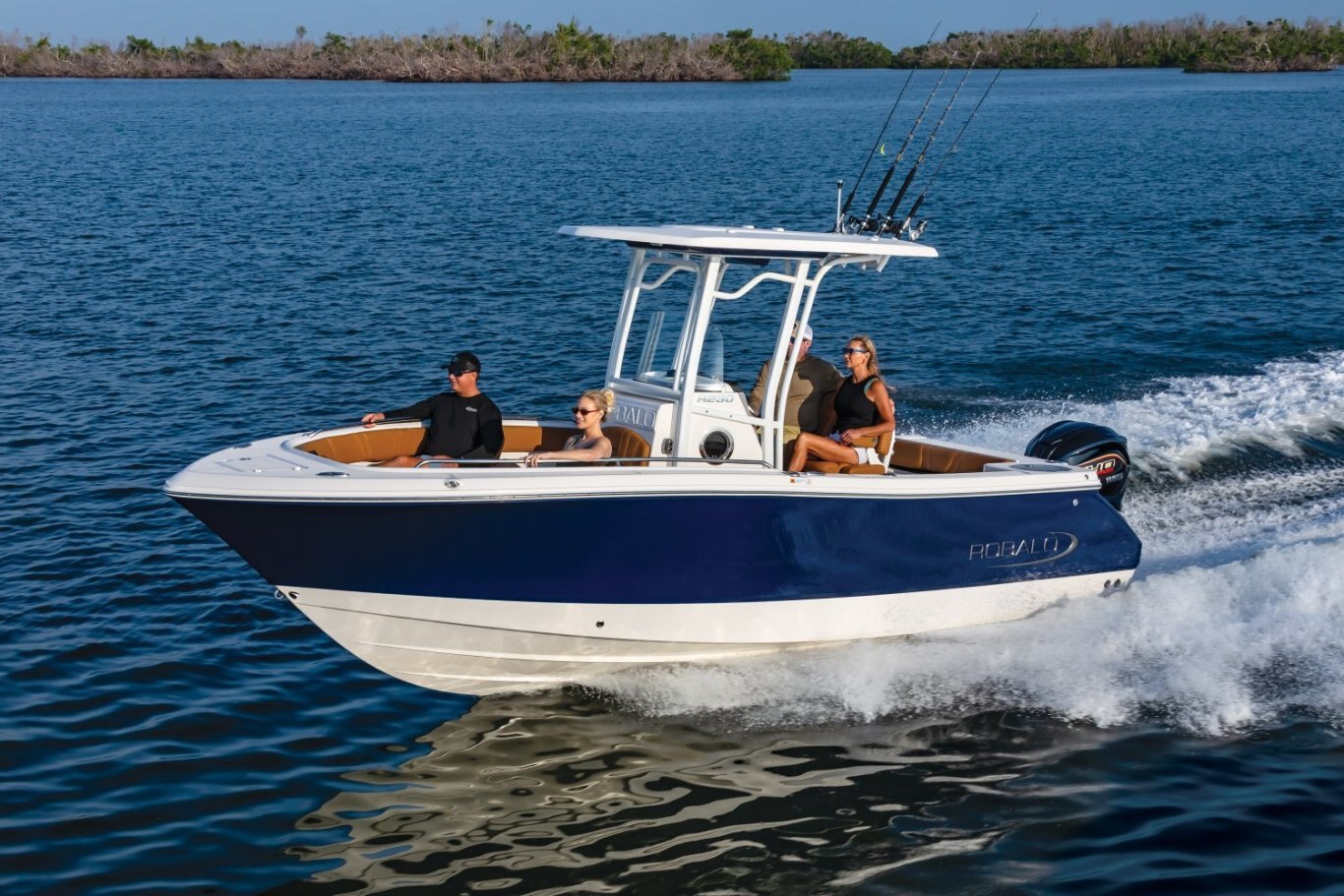

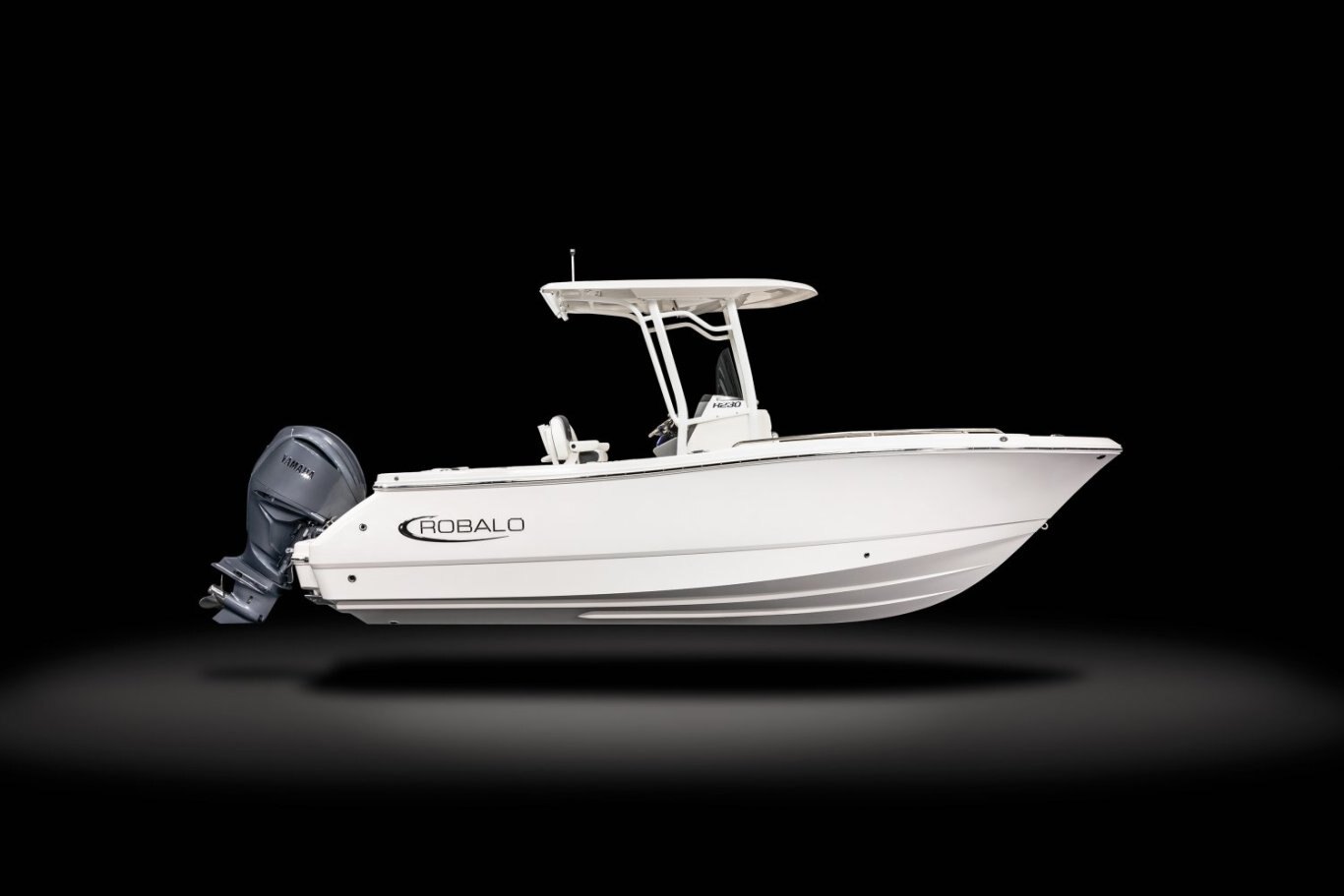

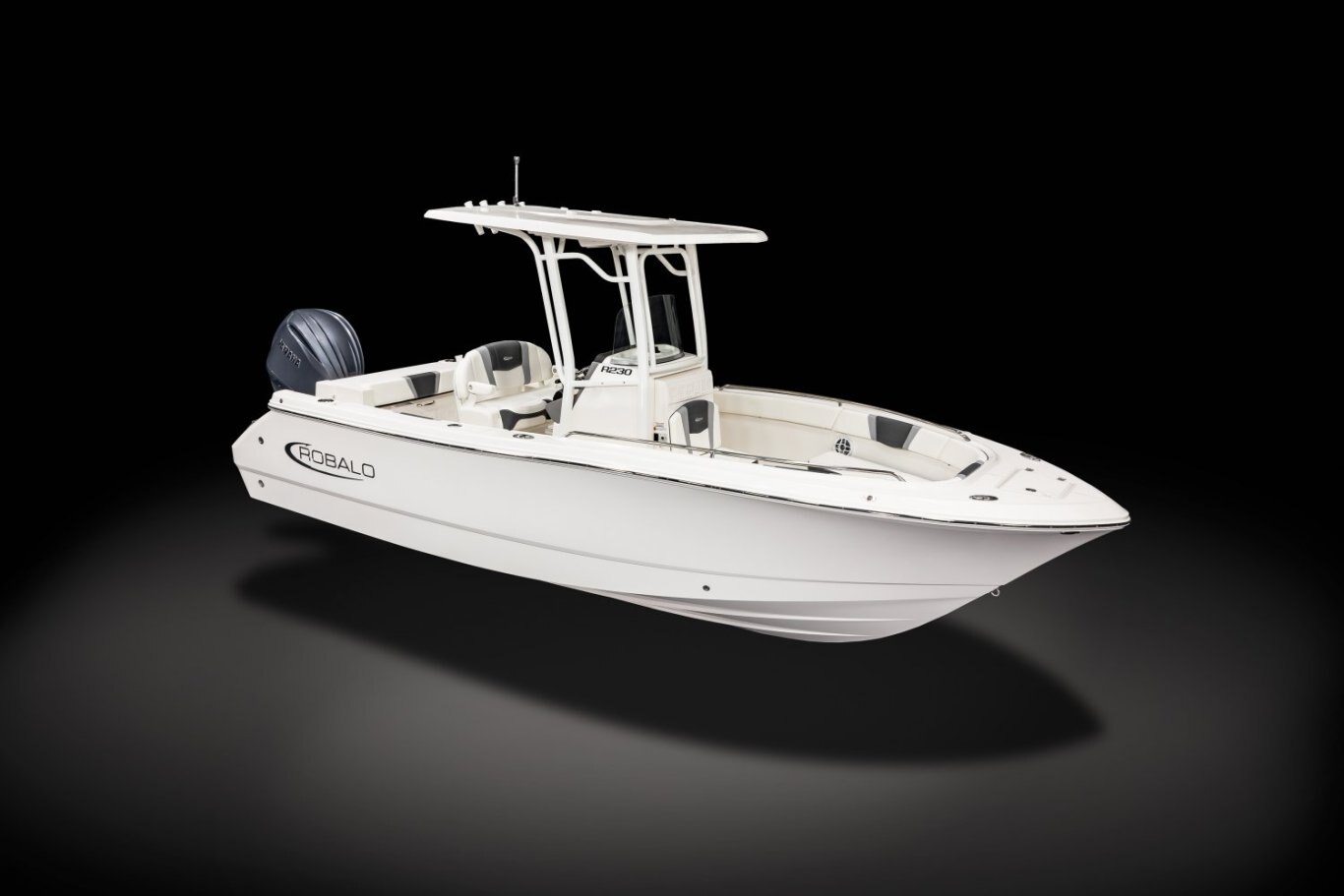

The Robalo R230 is designed to satisfy all of your fishing and performance needs. Outfitted with our Hydro Lift™ multi-angle hull design, horizontal tubed rod storage, SeaStar tilt hydraulic steering, and a 25-gallon live well. The R230 is perfect for those with the desire for endless possibilities.





Specifications
Model
R230
Category Name
Boat
Year
2025
Sale Type
New
Manufacturer
Robalo
LOA
23'
Beam
8' 6"
Max HP
250 HP
Deadrise
20°
Draft Up
16.00"
Fuel Capacity
90 gal
Water Capacity:
9.00 gal
Console Headroom:
5' 8"
Dry Weight W/ Engines
4700 lbs
Passenger Capacity (NMMA)
12/1725 lbs
Bridge Clearance With Hardtop:
8' 7"
exterior colors/graphics

Standard Features

Fish Hook Graphic
Premium White Gel Coat on Hull and Deck

Optional Features

Hull Side Gelcoat - Alloy Gray
Hull Side Gelcoat - Biscayne Blue
Hull Side Gelcoat - Black
Hull Side Gelcoat - Ice Blue
Hull Side Gelcoat - Seafoam Green
Hull Side Gelcoat - Shark Gray
Hull Side Gelcoat - Steel Blue
Solid Hull Alloy Gray Gel Coat
Solid Hull Biscayne Blue Gel Coat
Solid Hull Deepwater Black Gel Coat
Solid Hull Ice Blue Gel Coat
Solid Hull Sea Foam Green Gel Coat
Solid Hull Shark Gray Gel Coat
Solid Hull Steel Blue Gel Coat
White Hull
power

Standard Features

Stainless Steel Prop

Optional Features

ustom Painted Yamaha Engine - White
Yamaha Four Stroke F250XCB 250HP 25" with Hydraulic Steering
Yamaha Four Stroke F250XSB 250HP 25" with Digital Electric Steering
Yamaha Four Stroke VF250XB VMAX 250 HP 25"
Yamaha Four Stroke White F250XSB2 250HP 25" with Digital Electric Steering
interior color

Optional Features

Cockpit Interior - Cayenne
Cockpit Interior - Harbor Black
Cockpit Interior - Harbor Blue
Cockpit Interior - Harbor Gray
Cockpit Interior - Harbor Ice Blue
Cockpit Interior - Harbor Mist
Cockpit Interior - Harbor Seafoam Green
Cockpit Interior - Harbor Steel Blue
Cockpit Interior - Sand
Cockpit Interior - Shadow
canvas / tops / towers

Standard Features

Fiberglass Hardtop with Powder Coated Frame (Black or White) Includes: (4) Rod Holders, Storage Box, LED Spreader Lights and Integrated Console Grab Rails
Shipping Cover

Optional Features

Forward Canvas Fly - Black Canvas
Forward Canvas Fly - White Canvas
Hard Top Complete (Black Powder Coated)
Hardtop Underside Gel Color - Alloy Gray
Hardtop Underside Gel Color - Biscayne Blue
Hardtop Underside Gel Color - Deepwater Black
Hardtop Underside Gel Color - Ice Blue
Hardtop Underside Gel Color - Seafoam Green
Hardtop Underside Gel Color - Shark Gray
Hardtop Underside Gel Color - Steel Blue
Mooring Cover
Standard Hard Top Complete Powder Coated White
dash / electrical

Standard Features

12V Dual Pro USB / Power Plug
12V Wiring Buss Inside Console
Aluminum Panel with Weather Proof Stainless Steel Round Switches and Circuit Breakers
Bilge Pump with Automatic Switch
Custom Molded Vinyl Wrapped Helm Visor
Digital Gauge Display (Yamaha CL5 or Mercury Vessel View 403)
Dual Battery System with Crossover Switch and Voltage Sensing Relay (VSR)
Electric Horn
Electrical Connectors Triple O-Ring Sealed and Water Tight
Lighted Compass
Navigation Lights - LED
Owner's Dry Bag
Premium Sound System Includes AM/FM/WB, Bluetooth, and Remote Control (Compatible for NMEA and Sirius Satellite)
SeaStar Tilt Hydraulic Steering
Stainless LED Electronic Push Button Switches and Water Resistant DC Breakers
Stainless Steel Steering Wheel with Control Knob
Tinned Copper Wiring with Waterproof Connectors
Water Resistant Speakers (4), with Blue LED Lighting
Waterproof Wireless Charging Dock

Optional Features

Dual Battery Charger
JL Audio Sound System Upgrade
Pre-Wire for Trolling Motor
Simrad NMEA 2000 Starter Package with Audio Interface
Simrad NSS12 EVO3S
Trim Tabs with Indicators
Trolling Motor with Triple Bank Charger - Minn Kota Riptide Terrova Quest 36V 115lb Thrust, 87"
Twin Simrad NSS9 EVO3S

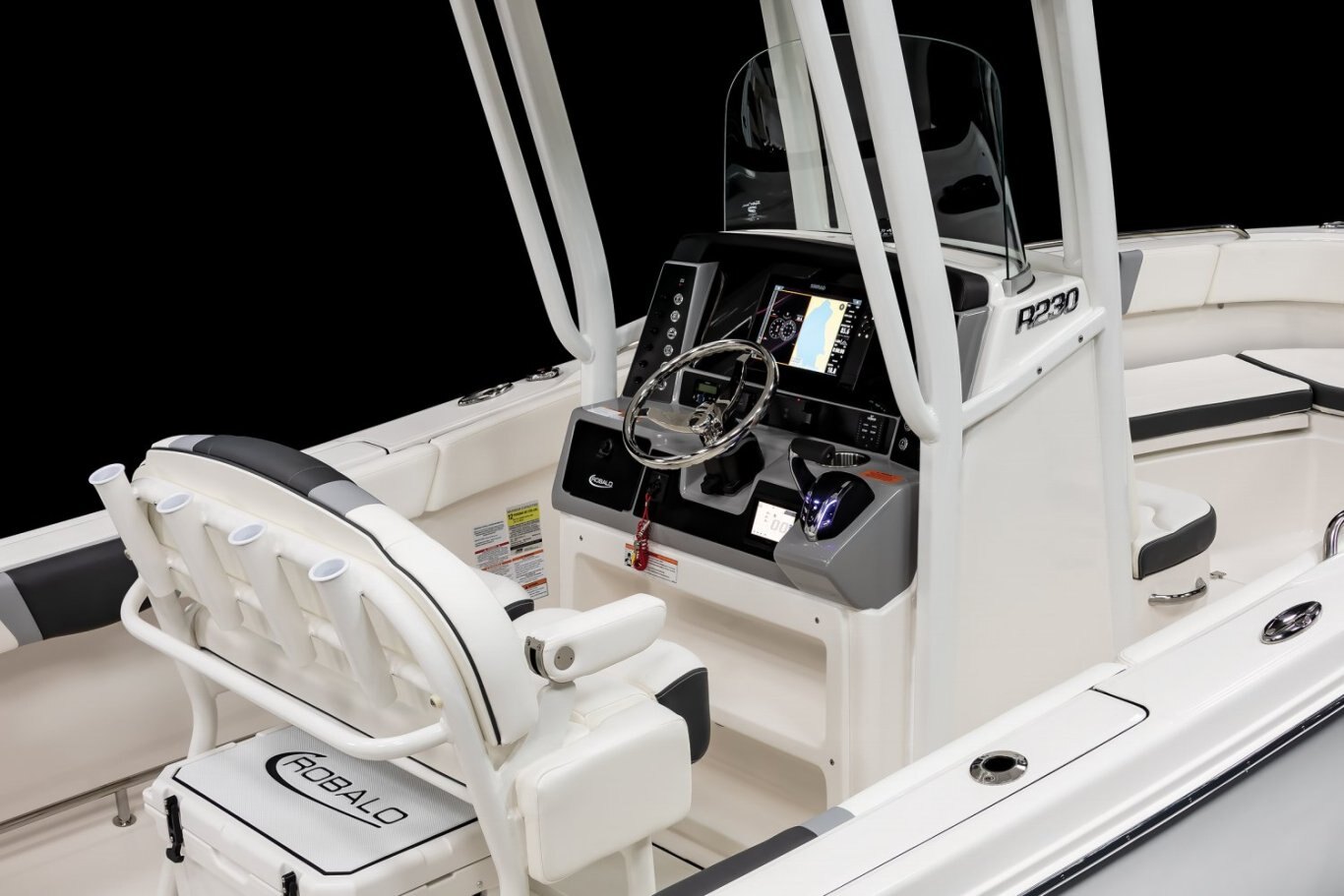

console

Standard Features

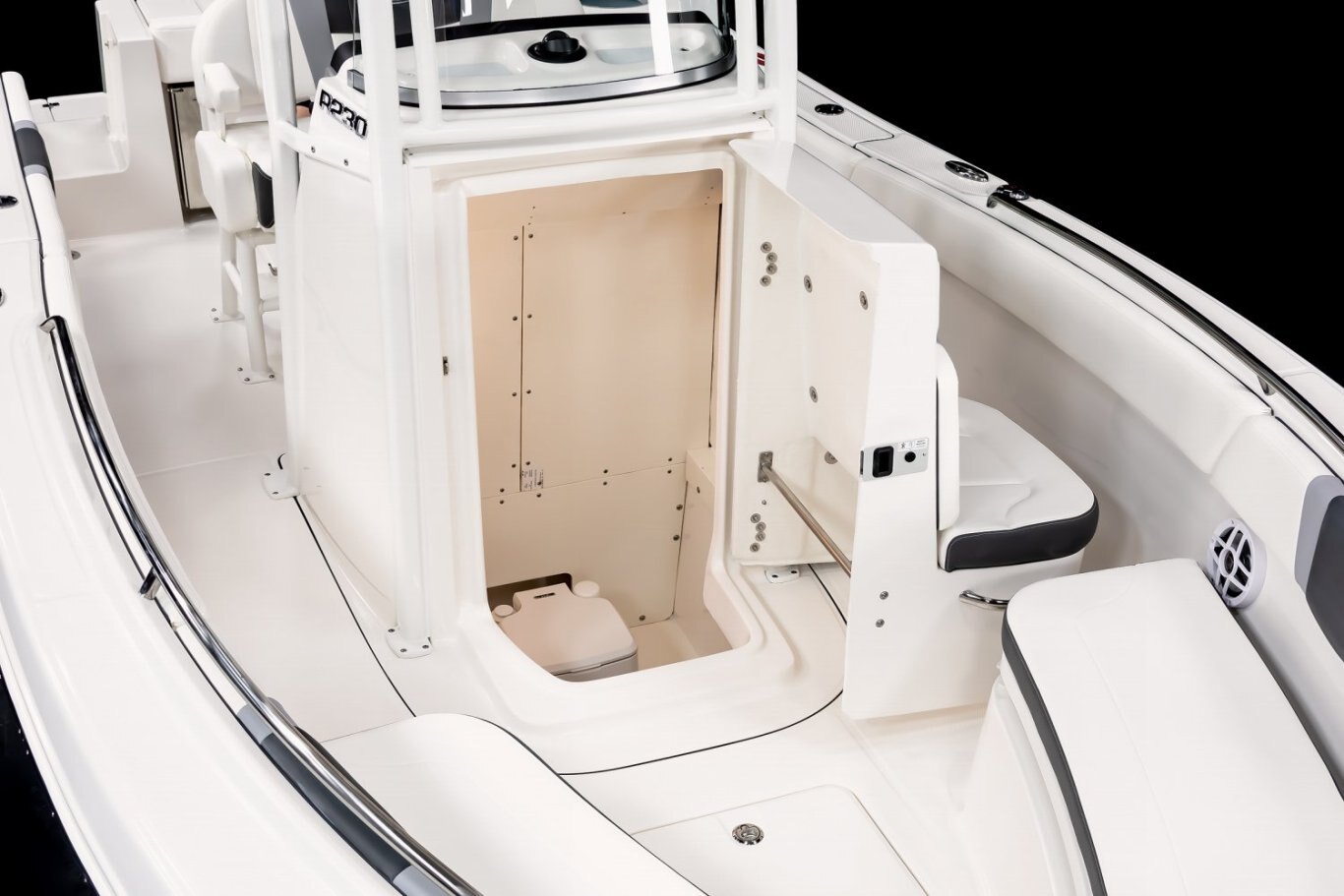

Access into Console from Forward Side
Aluminum Framed Glass Windshield
Console Grab Rail
Fiberglass Console Door - Friction Hinged and Lockable
Forward Console Seat and Bolster
Head Pan with Non-Skid Surfaces
Integrated Dual Level Footrest
Lockable Glovebox
Opening Portlight with Screen
Porta-Pottie
Stainless Steel Drink Holders (2)
Storage on Top of Console with Drains

Optional Features

Gravity Discharge Toilet with 6.5 Gallon Holding Tank
Gravity Discharge Toilet with Overboard Discharge
Seadek Helm Mat - Cayenne
Seadek Helm Mat - Dune
Seadek Helm Mat - White

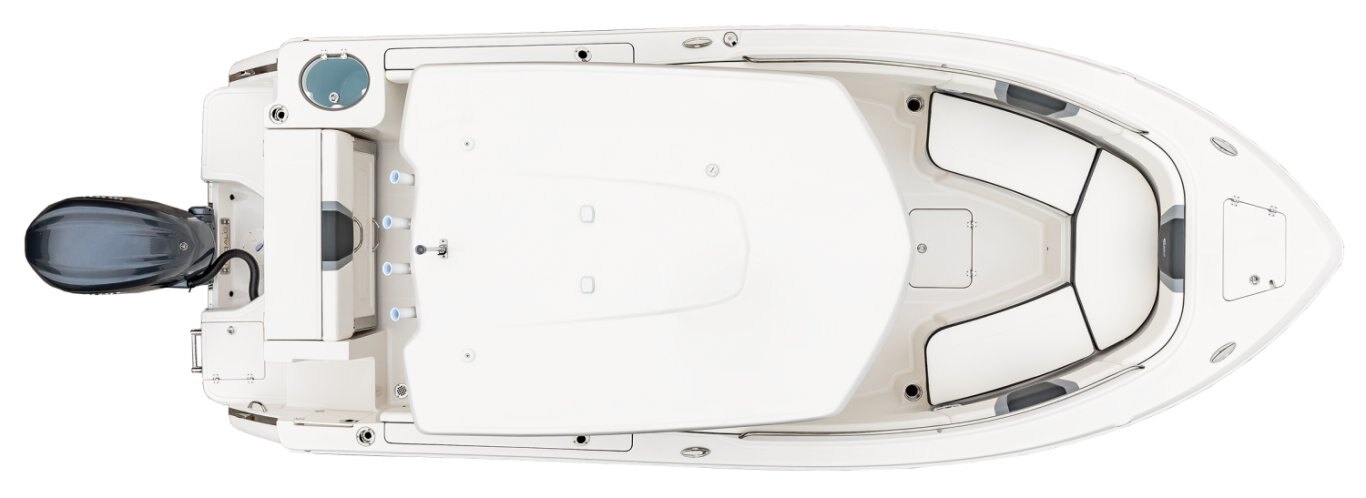

cockpit

Standard Features

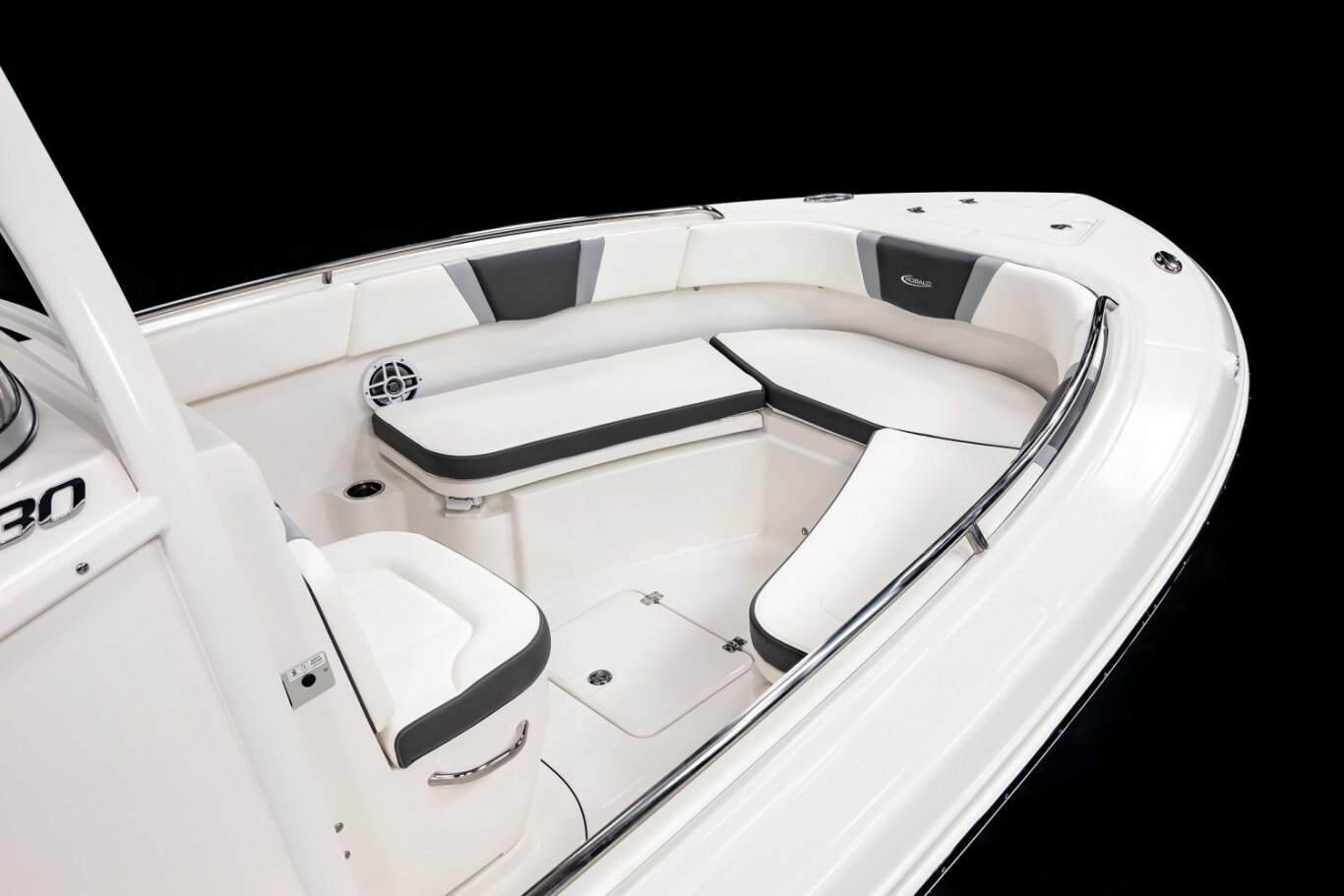

Bow Casting Platform Converts to U-Shaped Seating
Bow Cushions - (Removable)

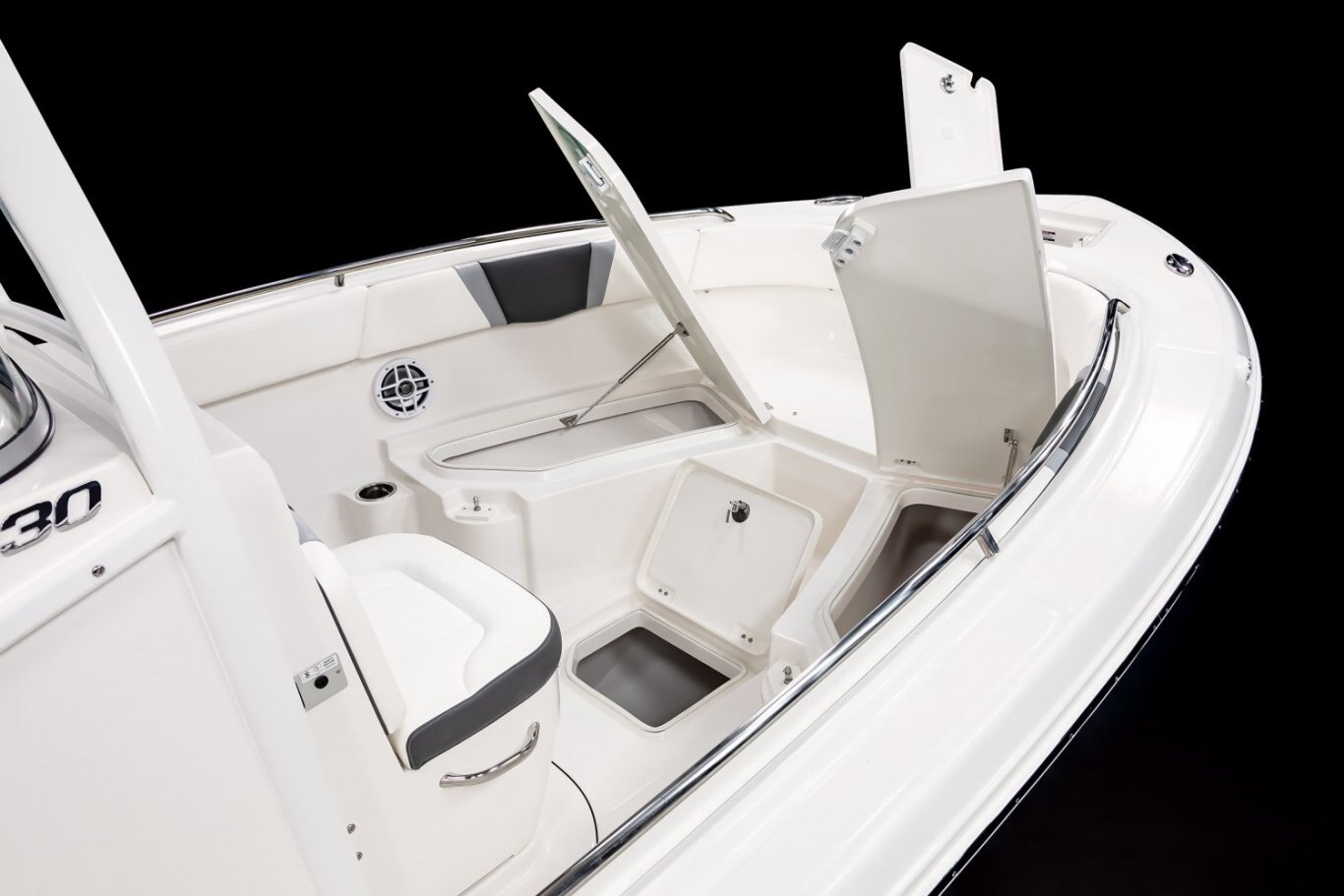

Bow Floor Storage Compartment with Fiberglass Lid
Bow Insulated Storage Compartments (23 Gallons) with Overboard Drains
Cockpit and Bow Coaming Bolsters
Diamond Lustre Non-Skid Surfaces
Dual Color Cockpit LED Courtesy Lights (White and Blue)
Encapsulated Reserve Flotation

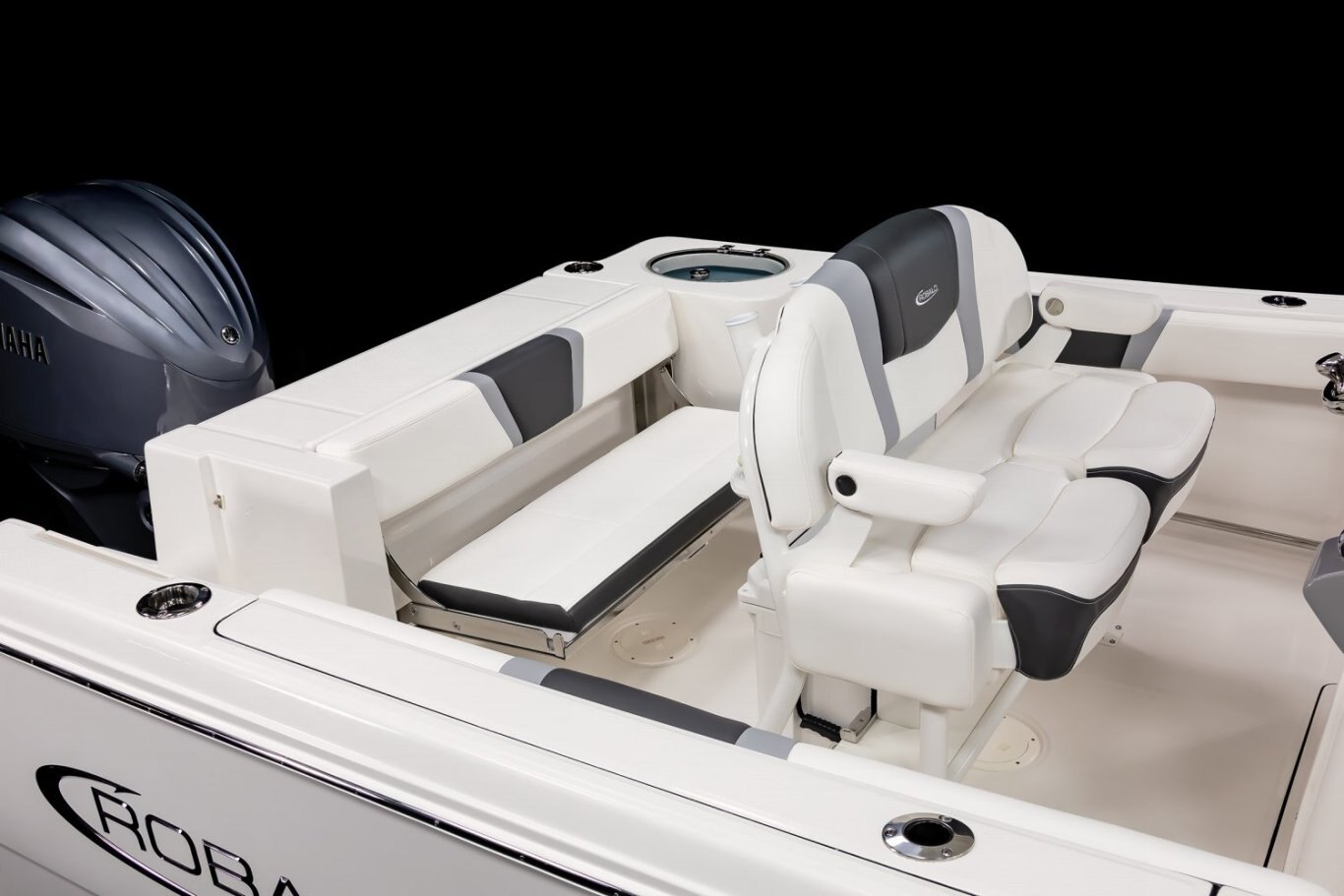

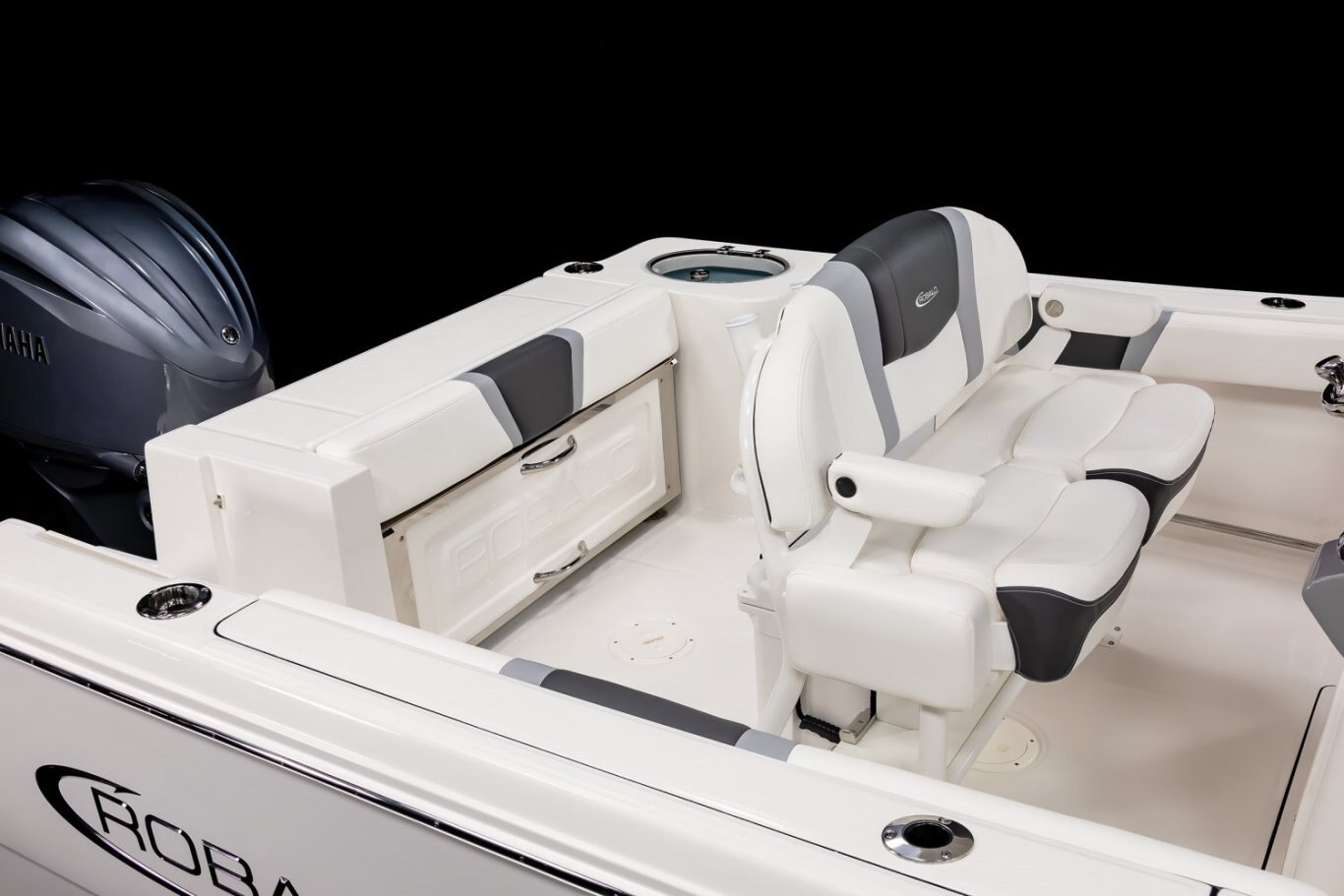

Full Transom Seat Folds Flush into Transom Wall
Horizontal Rod Storage under Gunwale (Port and Starboard)
Interior Color Packages: Harbor Black, Harbor Blue, Harbor Gray, Harbor Ice Blue, Harbor Seafoam Green, Harbor Steel Blue, Harbor Mist, Shadow, Sand or Cayenne

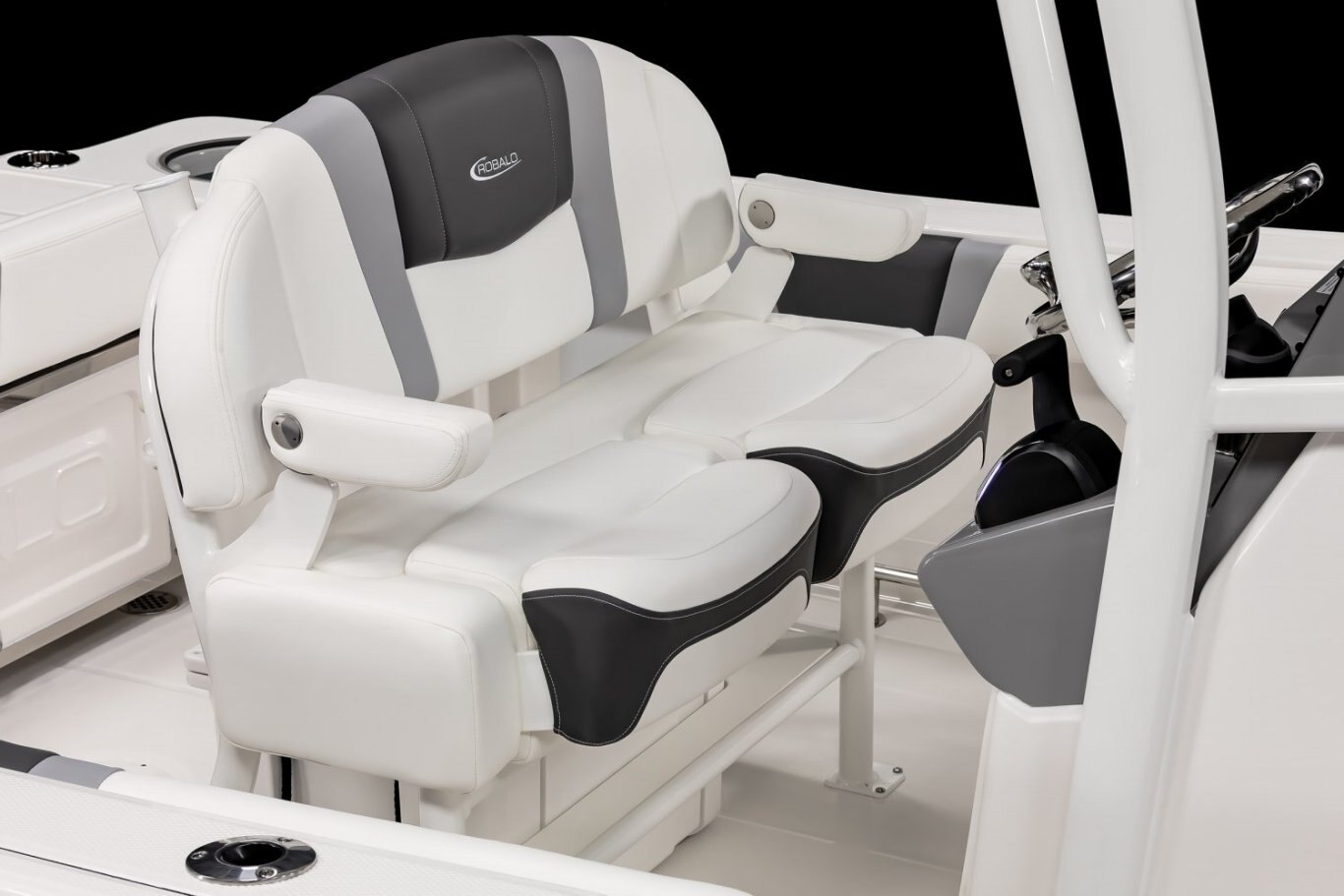

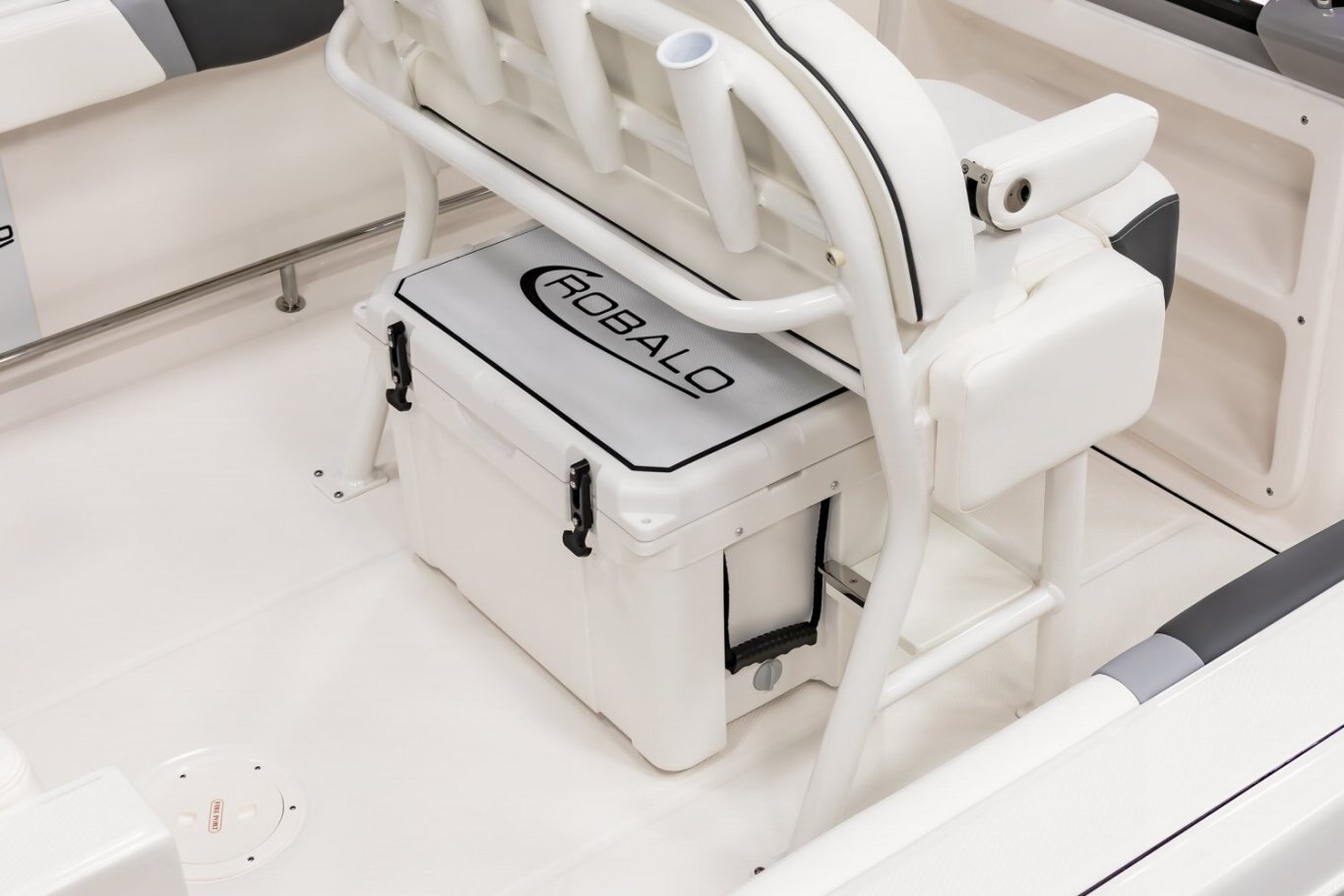

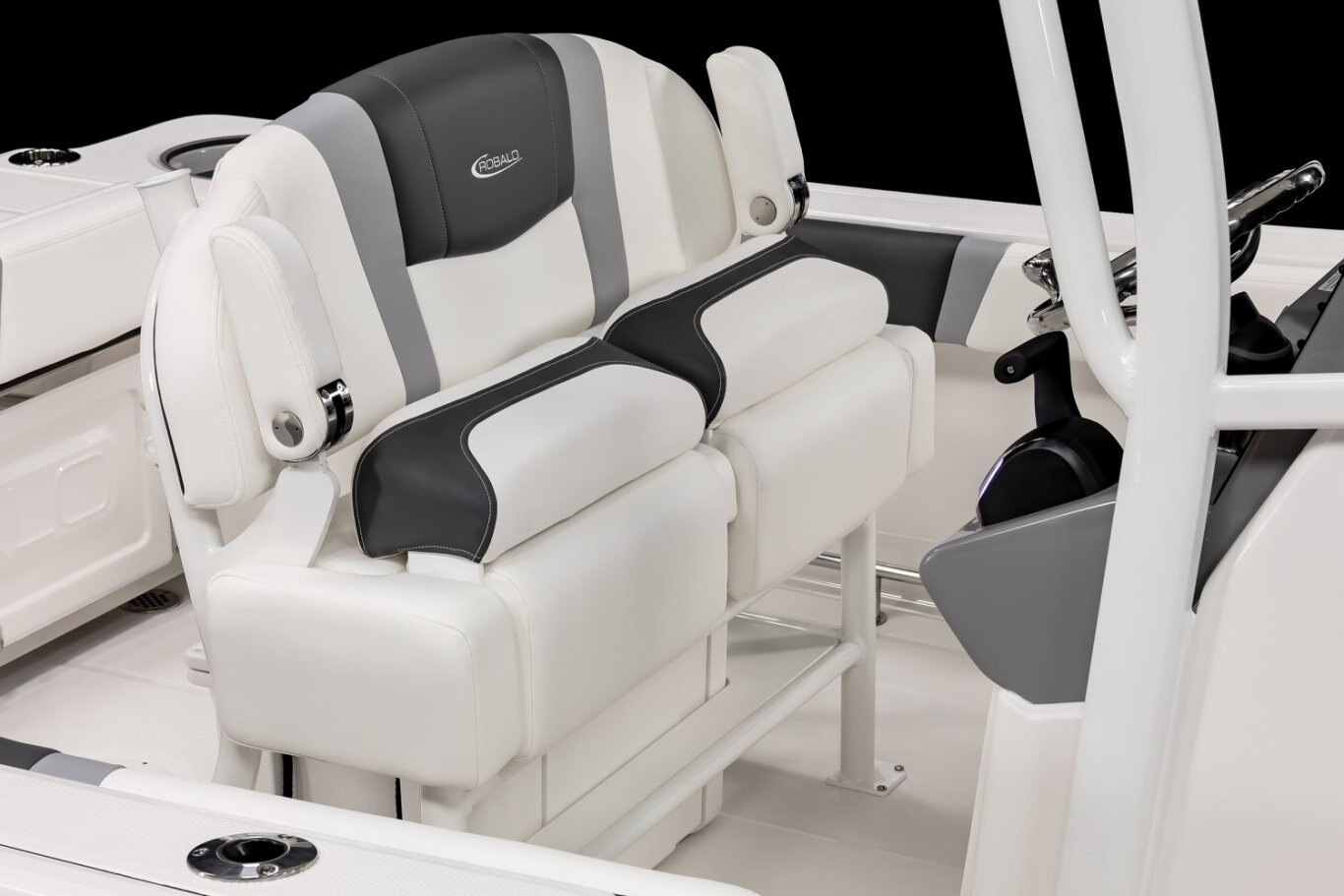

Leaning Post with Dual Flip Up Bolsters, Backrest, Rod Holders (4) and 50 Liter Cooler (Black or White Powdercoated)
Molded Gunnel Inserts with Stainless Steel Toe Rail

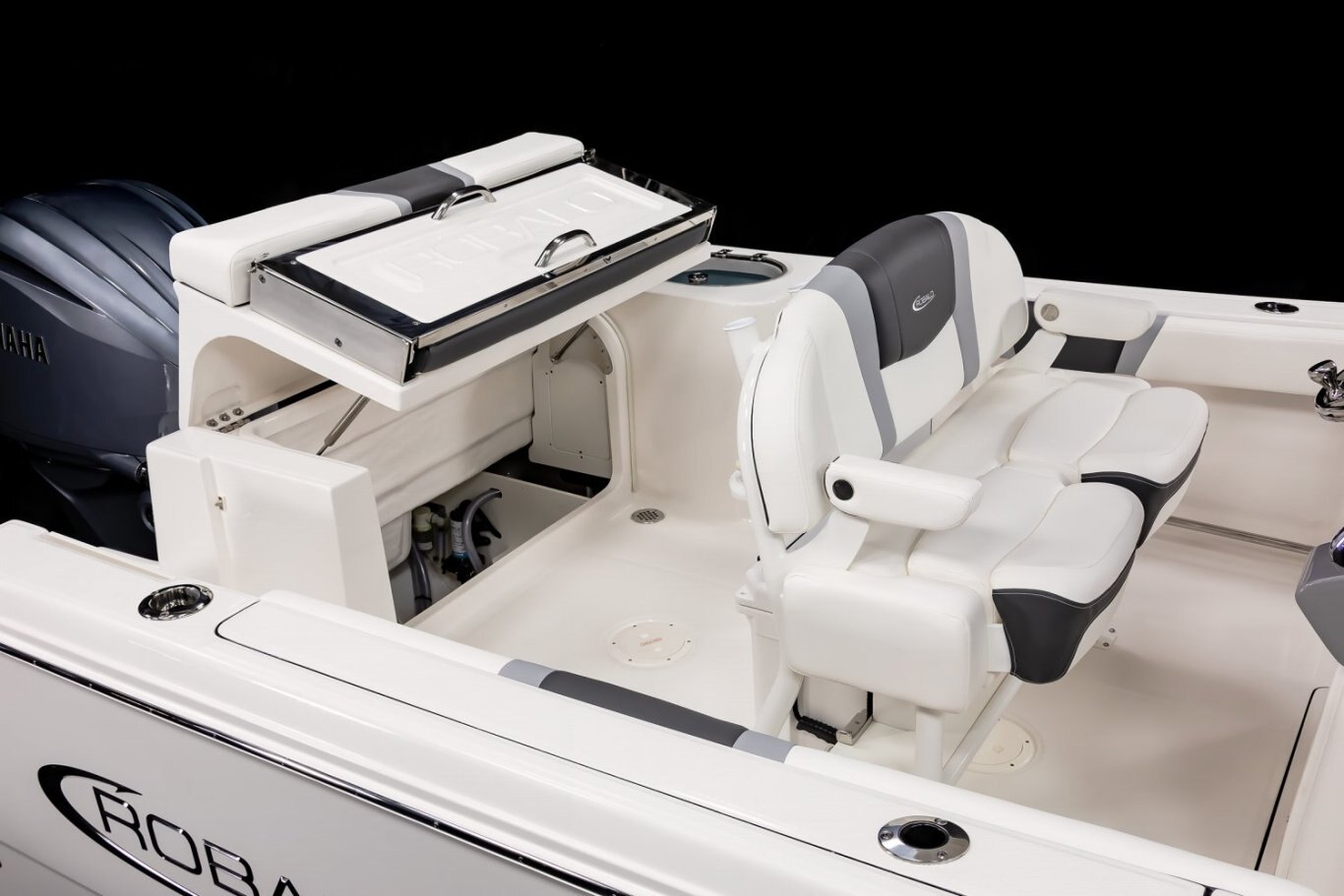

Oversized Battery and Pump Compartment in Transom

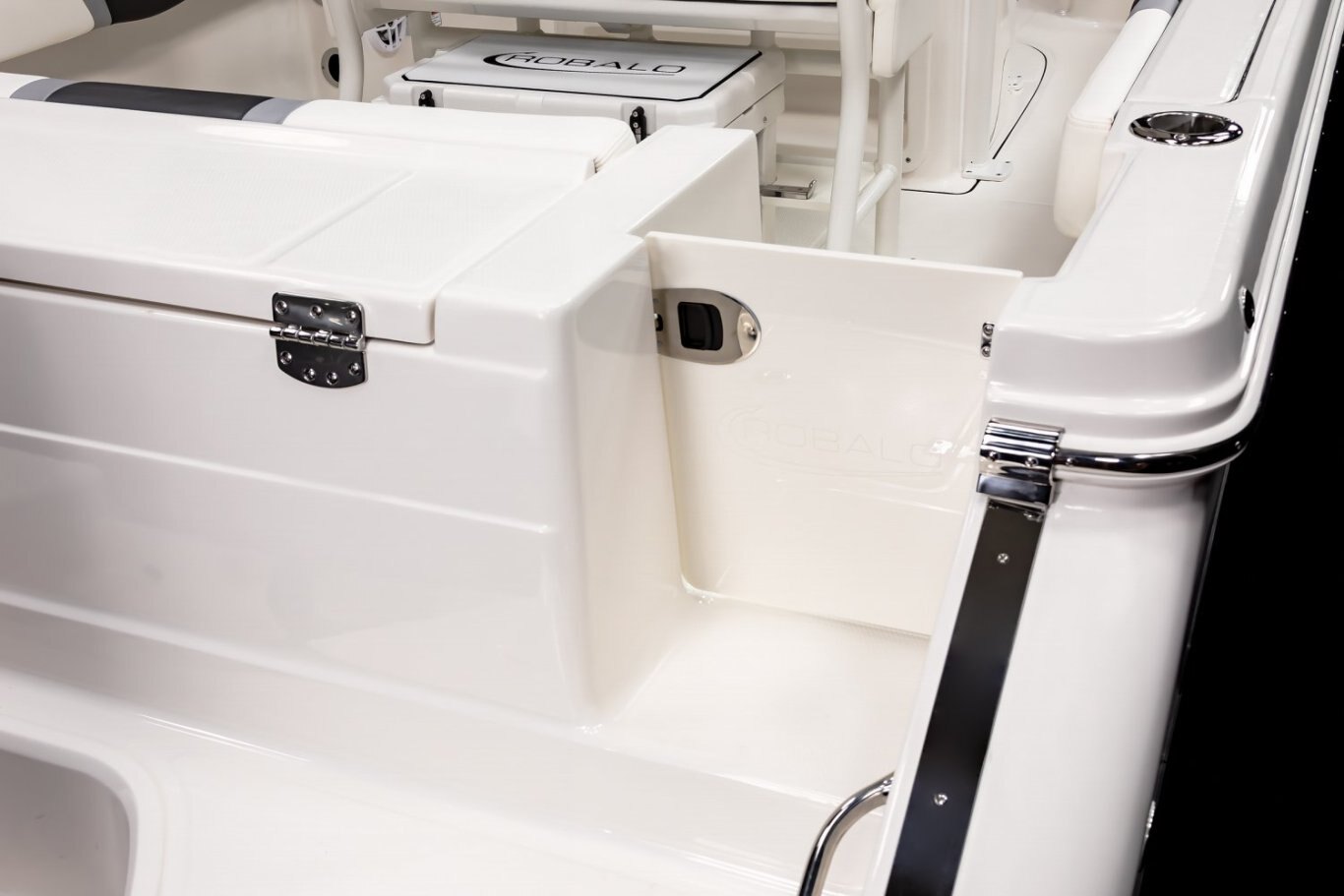

Port Aft Insulated Livewell (30 Gallons) with LED Lighting, Blue Gelcoat Finish and Adjustable Flow Valve
Premium Stain Resistant Silicone Cockpit Fabric
RTM Fiberglass Lids
Self Bailing Cockpit with Integrated Drain Fittings
Stainless Steel Cockpit Grab Rails
Stainless Steel Drink / Rod Holders (2)
Stainless Steel Drink Holders (2)
Stainless Steel Friction Hinges on Molded Hatches
Stainless Steel Rod Holders Mounted in the Deck Gunwale (2)
Walk Thru Transom Door

Optional Features

Bow Filler Cushion
Bow Table with Dedicated Storage
Leaning Post with Backrest, 4 Rod Holders, Dual Flip Up Bolsters and Cooler - Black Powder Coated
Leaning Post with Backrest, 4 Rod Holders, Dual Flip Up Bolsters, Cooler and Arm Rest - Black Powder
Leaning Post with Backrest, 4 Rod Holders, Dual Flip Up Bolsters, Cooler and Arm Rest - White Powder
Removable Bow Seating Backrest
utility

Standard Features

Anchor Rope and Chain Locker at Bow
Encapsulated Reserve Floatation
Fender Holders (2)
Fiberglass Structural System
Fuel/Water Separator
Garboard Drain
Heavy Duty Rubrail with Stainless Steel Insert
High Speed Pick Up for Livewell Pump
Hydro Lift™ Multi Angle Hull Design
Kevlar Reinforced Hull
Lifetime Limited Hull Warranty
NMMA Certified using ABYC Standards
Poured Composite Transom Coring
Raw Water Wash Down System with Seawater Strainer
Stainless Steel Bow and Stern Eyes
Stainless Steel Bow Rails
Stainless Steel Pull-Up Cleats (4)
Stainless Steel Thru Hull Fittings
Stainless Steel Transom Trim
Three-Step Telescoping Boarding Ladder with Handle Concealed Under a Fiberglass Hatch

Optional Features

5 Year Premium Level Limited Component Warranty
Custom Anchor
Fresh Water Shower
Prep Fee
Ski Tow - Black Powder Coated
Ski Tow - White Powder Coated
trailer

Standard Features

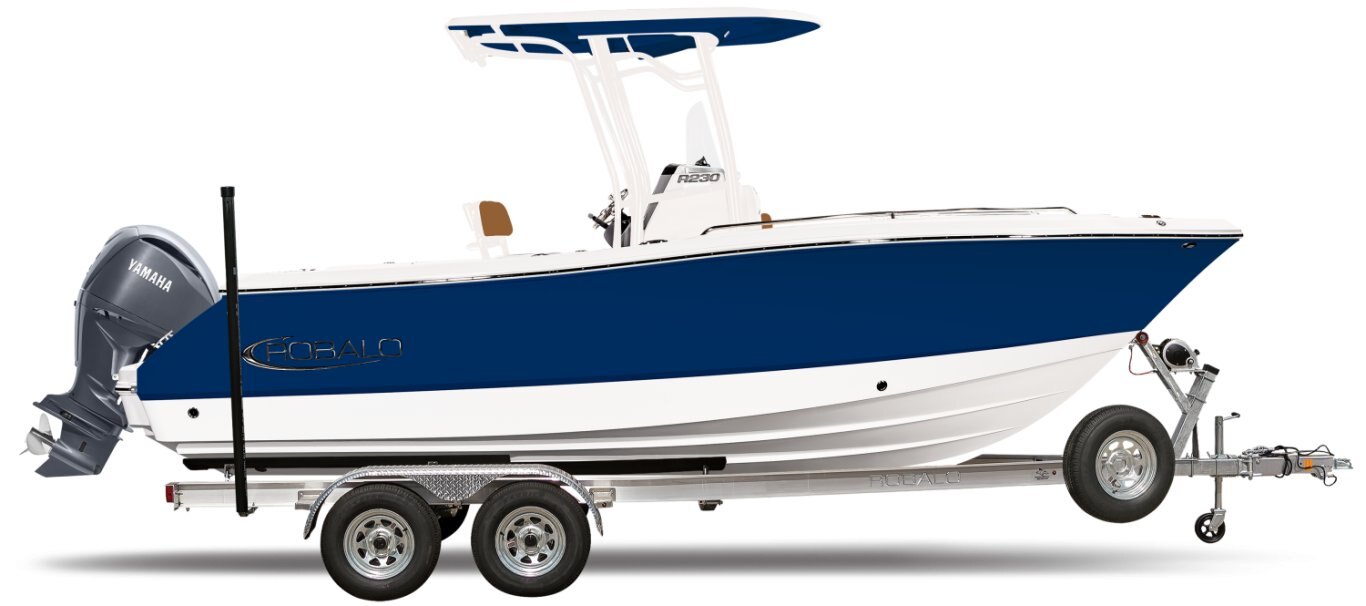

Aluminum Tandem Axel Trailer Includes: Tandem Axle, Disc Brakes on all Four Wheels, Folding Tongue Jack, 15" Galvanized Wheels, LED Lights Submersible, Winch Stand with Safety Straps and Trailer Side Guides

Optional Features

Delete Standard Trailer
Spare Tire Kit - Galvanized Wheel
Spare Tire Kit for Aluminum Trailer - Aluminum Wheel
Standard Aluminum Trailer
Trailer - Aluminum Tandem Axle with Aluminum Wheels
