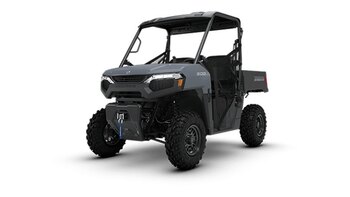

2026 RANGER 500 STEALTH GRAY Base

Name: 2026 RANGER 500 STEALTH GRAY Base
Brand: POLARIS
Availability: InStock

Call Email

$12,799 CAD

Contact Us Get Approved Value a Trade Get Directions Get Directions Print

Specifications

Model

RANGER 500 STEALTH GRAY Base

Category Name

UTV - Side x Side

Year

2026

Sale Type

New

Manufacturer

POLARIS

Vin

3NSCCA5A3TE100096

Color

STEALTH GRAY

Class

U

CodeName

RANGER 500 STEALTH GRAY Base

FuelType

Gas

BodyStyle

Plastic

Hitchtype

Rear: Receiver

Wheelsize

Front Diam. (mm): 635.00, Rear Diam. (mm): 635.00

Drivetype

Selectable 4X2 / AWD

Powertype

Single-Cylinder

Trimcolor

Not Available

Model Code

R26CCA5AB8

Titlestatus

CLEAN

Fuelcapacity

35

Enginecycles

4-Stroke

Unitcondition

EXCELLENT

ROOF

STANDARD

WINCH

STANDARD

DUMP BOX

300 LBS

Model Code

R26CCA5AB8

LED HEADLIGHTS

STANDARD

TOWING CAPACITY

1500 LBS

brakes

Parking Brake

Park In-Transmission

Front /Rear Brakes

4-wheel hydraulic disc

features

MAKES WORK EASIER

Save time and energy on property tasks thanks to the dump box, towing capability and standard winch on RANGER 500.

DUMP BOX

Outworks a Wheelbarrow

Make fewer trips with the gas-assist dump box. It can haul up to 300 lbs., approximately 10 bags of dry mulch.

TOWING

Manage Larger Loads

A 1,500-lb. towing capacity with a standard 2" hitch receiver easily handles heavy loads—enabling you to efficiently transport heavy landscaping materials or large brush.

WINCH

Extra Pulling Power

Clear fallen trees and remove stumps with the pulling power of a factory-installed 2,500-lb. winch.

Cruise Around Your Property

Maximize fun and efficiency, with a 28-hp engine that helps you navigate your property quickly.

dimensions

Wheelbase

73.2" (186 cm)

Hitch Type

Standard 2" (5 cm) receiver

Curb Weight

1,210 lbs. (549 kg)

Box Capacity

300 lbs. (136.1 kg)

Fuel Capacity

9.5 gal (35.9 L)

Turning Radius

13.5 ft (4.2 m)

Person Capacity

2

Towing Capacity

1500 lb (680 kg)

Ground Clearance

10" (25.4 cm)

Payload Capacity

1,000 lbs. (454 kg)

Estimated Dry Weight

1,155 lbs. (524 kg)

Bed Box Dimensions (L X W X H)

32.6 x 46.2 x 11.25" (82.7 x 117.3 x 28.6 cm)

Overall Vehicle Size (L X W X H)

110 x 58.5 x 74.8" (279.4 x 148.6 x 190 cm)

suspension

Rear Suspension

Dual A-arm, IRS 10" (25.4 cm) travel

Front Suspension

MacPherson strut 9" (22.9 cm) travel

tires / wheels

Wheels

12" aluminum

Rear Tires

25 x 10-12; Carlstar 489

Front Tires

25 x 8-12; Carlstar 489

exterior features

Winch

2,500-lb. winch with wired remote

Door Type

Cab nets

Cargo System

Gas-assist dump box with Lock & Ride accessory integration

Vehicle Protection

Steel front bumper with integrated winch mount

engine & drivetrain

Cooling

Liquid

Horsepower

28

Engine Type

4-stroke single cylinder DOHC

Drive System Type

All-wheel drive with auto-locking front drive and selectable VersaTrac Turf Mode

Fuel System/Battery

Electronic fuel injection

Cylinders Displacement

567 cc

Transmission/Final Drive

Automatic PVT H/L/N/R/P; shaft

comfort & convenience

Steering

Tilt adjustment

Seat Type

2-person, flip-up bench seat with 3-point harness.

Cab Components

Roof

Speed Limiting

Speed limiting controlled in gauge

Driver Instrumentation

4" LCD rider information center: user-selectable blue/red backlighting and brightness, programmable service intervals, speedometer, tachometer, odometer, tripmeter, clock, hour meter, gear indicator, fuel gauge, coolant temperature, voltmeter, service indicator and codes, seat belt reminder

lighting & electrical

Lighting

LED headlights and taillights

Electrical System

DC outlet, 660-W stator charging system
