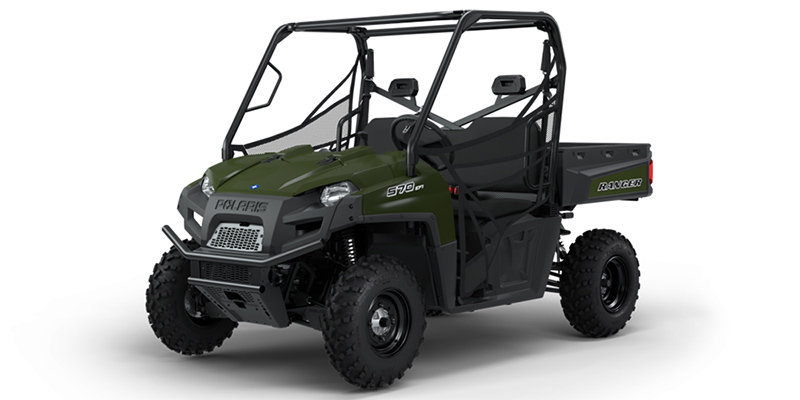

2024 Polaris Ranger 570 Full-Size

Stock Photos - Actual Images Coming Soon

47 people have recently viewed it.
CALL NOW! Hi, my name is and I'm interested in this 2024 Polaris Ranger 570 Full-Size Base . I'm in the area and you can reach me at or on my phone at .




Available Color

  • Sage Green
  • Status:
    New
  • Vehicle:
    2024 Polaris Ranger 570 Full-Size
  • Model Number:
    R24CCA57A1
  • Color:
    Sage Green
  • Location:
    DT Powersports & Marine
  • Warranty:
    Manufacturer's w/ Extended Available

BRAKES

  • Front Brake Type:
    Hydraulic Disc
  • Rear Brake Type:
    Hydraulic Disc

DRIVE LINE

  • Differential Lock Location:
    Rear
  • Driveline Brand:
    On-Demand™
  • Driveline Type:
    Selectable 4X2 / AWD
  • Limited Slip Differential Location:
    Center
  • Number Of Driveline Modes:
    2
  • Rear Unlocking Differential:
    Yes

ENGINE

  • Bore (in):
    3.9
  • Bore (mm):
    99
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    10
  • Cooling:
    Liquid
  • Cylinders:
    1
  • Displacement (cc):
    567
  • Displacement (ci):
    34.6
  • Engine Brand Name:
    ProStar™
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    Single-Cylinder
  • Fuel Injector Size (mm):
    42
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Regular
  • Fuel Type:
    Gas
  • Horsepower (bhp):
    44
  • Horsepower (kW):
    32.8
  • Starter:
    Electric
  • Stroke (in):
    2.9
  • Stroke (mm):
    73.6
  • Torque (Ft Lbs):
    35.4
  • Torque (Nm):
    48
  • Valve Configuration:
    DOHC
  • Valves Per Cylinder:
    4
  • Valves:
    4

EXTERIOR

  • A-Arm Skid Plate (Front):
    Yes
  • Bash Plate (Front):
    Yes
  • Body Material:
    Plastic
  • Brush Guard:
    Yes
  • Frame:
    Steel
  • Full Length Skid Plate:
    Yes

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge
  • Temperature Warning Type:
    Gauge

LIGHTS

  • Type:
    Halogen

SEATS

  • Headrest:
    Yes
  • Number Of Rows:
    1
  • Number Of Seats:
    3
  • Seat Material:
    Vinyl
  • Seat Type:
    Bench

STEERING

  • Steering Control:
    Steering Wheel
  • Steering Type:
    Manual

STORAGE

  • Bed Capacity (kgs.):
    363
  • Bed Capacity (lbs.):
    800
  • Bed Height (in):
    11.5
  • Bed Height (mm):
    290
  • Bed Length (in):
    36.5
  • Bed Length (mm):
    930
  • Bed Volume (ft3):
    13.1
  • Bed Volume (m3):
    0.4
  • Bed Width (in):
    54
  • Bed Width (mm):
    1370
  • Cargo Bed Material:
    Polyethylene
  • Cargo Bed Tilt:
    Yes
  • Integral Tie-Down Hooks:
    Yes
  • Number Of Cupholders:
    2

SUSPENSION

  • Front Suspension Type:
    McPherson Strut
  • Front Travel (in):
    9
  • Front Travel (mm):
    229
  • Number Rear Shock Absorbers:
    2
  • Rear Suspension Material:
    Steel
  • Rear Suspension Type:
    Independent Double A-Arm
  • Rear Travel (in):
    10
  • Rear Travel (mm):
    254

TECHNICAL SPECIFICATIONS

  • Dry Weight (kg):
    486
  • Dry Weight (lbs):
    1070.85
  • Engine Displacement to Weight (cc):
    0.53
  • Fuel Capacity (gal):
    9
  • Fuel Capacity (l):
    34.1
  • Ground Clearance (in):
    10.5
  • Ground Clearance (mm):
    267
  • GVWR (kgs):
    1108
  • GVWR (lbs):
    2442
  • Height (in):
    74
  • Height (mm):
    1880
  • Length (ft):
    9.5
  • Length (ft/ft):
    9
  • Length (ft/in):
    6
  • Length (in):
    114
  • Length (mm):
    2900
  • Payload Capacity (kgs):
    680.4
  • Payload Capacity (lbs):
    1500
  • Towing Capacity (kgs):
    907.2
  • Towing Capacity (lbs):
    1500
  • Turning Radius (ft):
    16
  • Wheelbase (in):
    79
  • Wheelbase (mm):
    2007
  • Width (in):
    60
  • Width (mm):
    1520

TOWING & HAULING

  • Rear Hitch Type:
    Receiver
  • Size (cm):
    5.1
  • Size (in):
    2

TRANSMISSION

  • Hi / Low Range:
    Yes
  • Primary Drive (Engine / Transmission):
    Belt
  • Primary Drive (Front Wheel):
    Shaft
  • Primary Drive (Rear Wheel):
    Shaft
  • Reverse:
    Yes
  • Transmission Brand:
    Polaris Variable Transmission (PVT)
  • Transmission Type:
    Continuously Variable (CVT)

WHEELS & TIRES

  • Front Tire (Full Spec):
    Carlisle 489
  • Front Tire Diameter (in):
    25
  • Front Tire Width:
    8
  • Front Wheel Diameter:
    12
  • Rear Tire (Full Spec):
    Carlisle 489
  • Rear Tire Diameter (in):
    25
  • Rear Tire Width:
    10
  • Rear Wheel Diameter:
    12
  • Tire Brand:
    Carlisle
  • Wheels Composition:
    Steel
